مشخصات تایر
| Wheel Position | SIZE | ply rating | standard rim | section wid. (mm) | overall dia. (mm) | rolling cirf. | max. load(kg) - single | max. load(kg) - dual | (kPa) - single | (kPa) - dual | Tread Depth (mm) | LI | SS | type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T | 245/70R17.5 | 18 | 7.5 | 252 | 780 | 2379 | 2725 | 2575 | 900 | 900 | 11 | 143/141 | J | TL |
| T | 265/70R19.5 | 16 | 7.5 | 258 | 864 | 2635.2 | 2500 | 2360 | 830 | 830 | 13 | 140/138 | M | TL |
| T | 265/70R19.5 | 18 | 7.5 | 258 | 864 | 2635.2 | 2725 | 2575 | 830 | 830 | 13 | 143/141 | J | TL |
| T | 285/70R19.5 | 18 | 8.25 | 287 | 888 | 2708.4 | 3350 | 3150 | 830 | 830 | 14 | 150/148 | J | TL |
| T | 385/55R19.5 | 18 | 12.25 | 386 | 924 | 2800 | 4000 | ---- | 900 | ---- | 15 | 156 J | TL | |
| T | 385/55R22.5 | 20 | 12.25 | 385 | 1004 | 3042 | 4250 | ---- | 830 | ---- | 16.5 | 158 | L | TL |
| T | 385/65R22.5 | 18 | 11.75 | 385 | 1067 | 3254.35 | 4250 | ---- | 830 | ---- | 16.8 | 158 | L | TL |
| T | 425/65R22.5 | 20 | 13 | 422 | 1118 | 3388 | 5000 | ---- | 830 | ---- | 16.5 | 165 | K | TL |
| T | 445/65R22.5 | 20 | 14 | 450 | 1148 | 3478 | 5600 | ---- | 830 | ---- | 16.5 | 169 | K | TL |

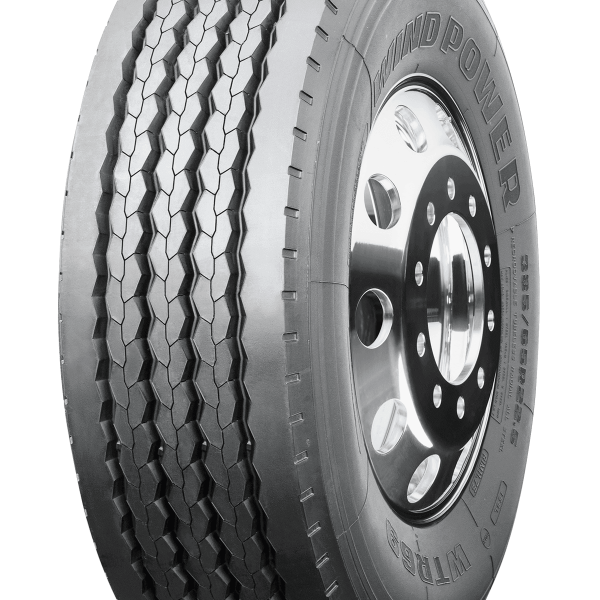

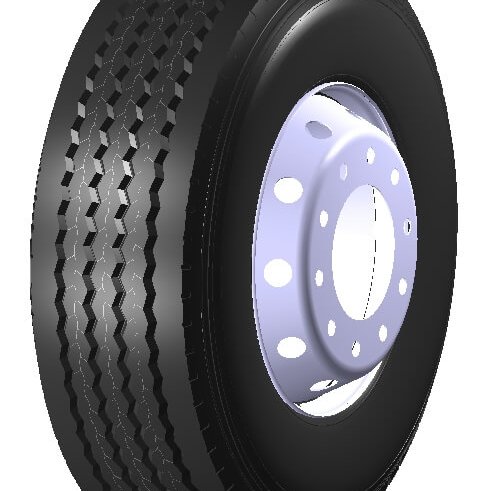

تصاویر تایر
