مشخصات تایر

Wheel Position	SIZE	ply rating	standard rim	section wid. (mm)	overall dia. (mm)	rolling cirf.	max. load(kg) - single	max. load(kg) - dual	(kPa) - single	(kPa) - dual	Tread Depth (mm)	LI	SS	type
S	11R22.5	14	8.25	277	1051	3206	2800	2650	720	720	15	144/142	L	TL
S	11R22.5	16	8.25	277	1051	3206	3000	2725	830	830	15	146/143	L	TL
S	11R24.5	14	8.25	282	1092	3331	3000	2725	720	720	15	146/143	L	TL
S	11R24.5	16	8.25	282	1092	3331	3250	3000	830	830	15	149/146	L	TL
S	275/80R22.5	16	8.25	285	1015	3096	3075	2800	830	830	15	149/146	L	TL
S	285/75R24.5	14	8.25	280	1050	3203	2800	2575	760	760	15	144/141	L	TL
S	295/75R22.5	14	9	292	1015	3096	2800	2575	760	760	15	144/141	L	TL

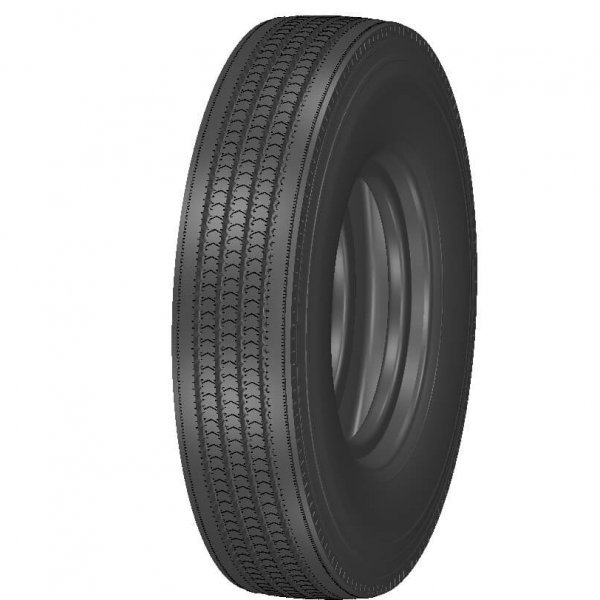

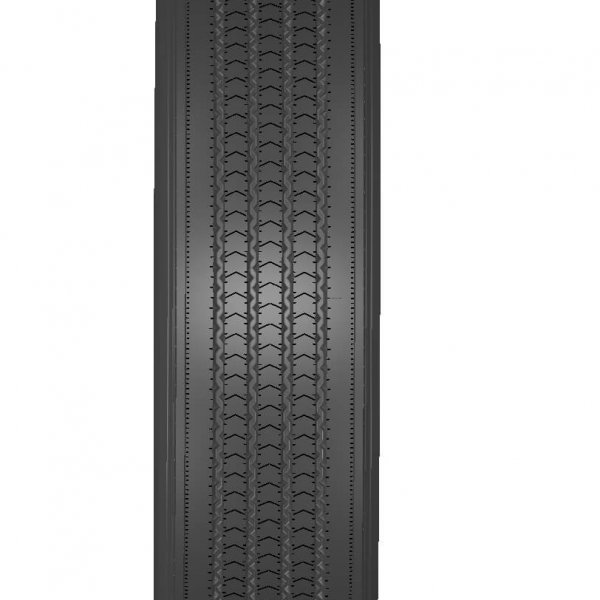

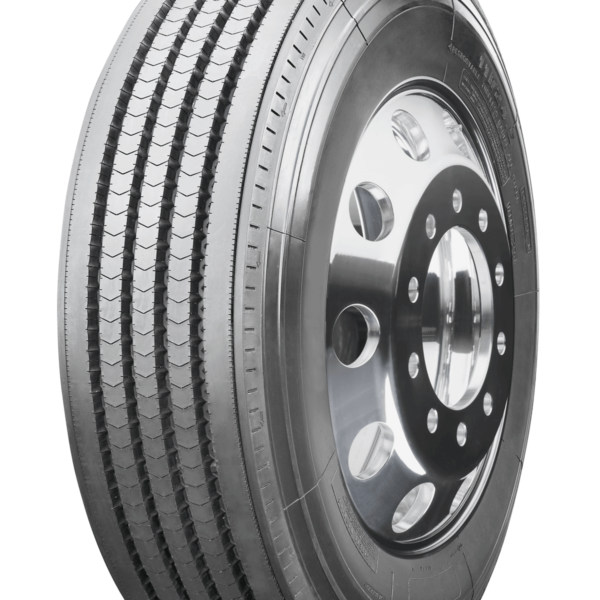

تصاویر تایر
