مشخصات تایر
| Size | PR | Load Index | Speed Index | Rim Size | Max Inflation(Kg/Kpa) - Single | Max Inflation(Kg/Kpa) - Dual | Inflated Dimensions(mm) - Section | Inflated Dimensions(mm) - Overall |
|---|---|---|---|---|---|---|---|---|
| 8R19.5 | 12 | 124/122 | M | 6.00 | 1600/760 | 1500/760 | 203 | 859 |
| 11R22.5 | 14 | 144/142 | M | 8.25 | 2800/730 | 2650/730 | 279 | 1050 |
| 11R22.5 | 16 | 146/143 | M | 8.25 | 3000/830 | 2725/830 | 279 | 1050 |
| 11R24.5 | 14 | 146/143 | M | 8.25 | 3000/730 | 2725/730 | 279 | 1104 |
| 11R24.5 | 16 | 149/146 | M | 8.25 | 3250/830 | 3000/830 | 279 | 1104 |
| 12R22.5 | 16150/147 | M | 9.00 | 3350/830 | 3075/830 | 300 | 1084 | |
| 215/75R17.5 | 16 | 126/124 | M | 6.00 | 1700/700 | 1600/700 | 212 | 767 |
| 225/70R19.5 | 12 | 125/123 | M | 6.75 | 1650/660 | 1550/660 | 226 | 811 |
| 235/75R17.5 | 18 | 143/141 | M | 6.75 | 2725/870 | 2575/870 | 233 | 797 |
| 245/70R19.5 | 16 | 135/133 | M | 7.50 | 2180/830 | 2060/830 | 248 | 839 |
| 275/70R22.5 | 16 | 148/145 | M | 8.25 | 3155/900 | 2900/900 | 276 | 958 |
| 275/80R22.5 | 16 | 149/146 | M | 8.25 | 3250/850 | 3000/850 | 276 | 1012 |
| 285/75R24.5 | 14 | 144/141 | M | 8.25 | 2800/760 | 2575/760 | 283 | 1050 |
| 285/75R24.5 | 16 | 147/144 | M | 8.25 | 3075/830 | 2800/830 | 283 | 1050 |
| 295/75R22.5 | 14 | 144/141 | M | 9.00 | 2800/760 | 2575/760 | 298 | 1014 |
| 295/75R22.5 | 16 | 146/143 | M | 9.00 | 3000/830 | 2725/830 | 298 | 1014 |
| 295/80R22.5 | 16 | 152/148 | M | 9.00 | 3550/850 | 3150/850 | 298 | 1044 |
| 315/80R22.5 | 20 | 156/150 | M | 9.00 | 4000/860 | 3350/860 | 312 | 1096 |

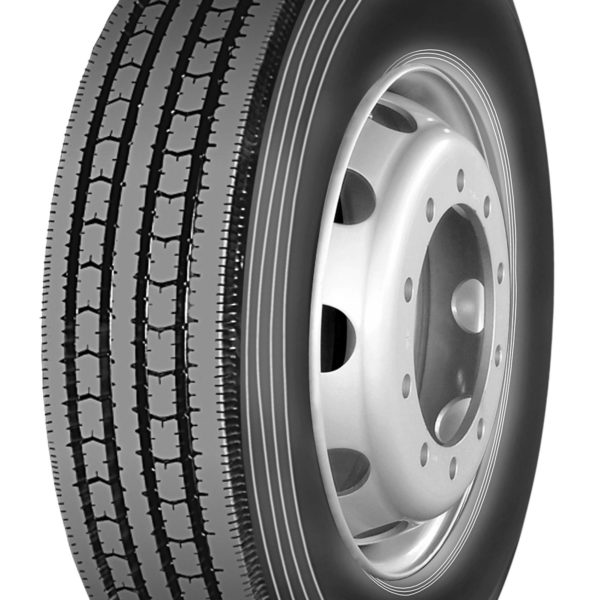

تصاویر تایر
